WSI Visualization in LazySlide

LazySlide implements different plotting functions to showcase different parts of WSIData.

import lazyslide as zs

wsi = zs.datasets.gtex_artery()
wsi

WSI: /home/runner/.cache/huggingface/hub/datasets--RendeiroLab--LazySlide-data/snapshots/3ae589f240b9897db973b706f77636559b100696/GTEX-1117F-0526.svs
Reader: openslide
Dimensions: 19958×19919 (h×w), 3 Pyramids
Pixel physical size: 0.49 MPP (20X)

SpatialData object, with associated Zarr store: /home/runner/.cache/huggingface/hub/datasets--RendeiroLab--LazySlide-data/snapshots/3ae589f240b9897db973b706f77636559b100696/GTEX-1117F-0526.zarr
├── Images
│     └── 'wsi_thumbnail': DataArray[cyx] (3, 1996, 1992)
├── Shapes
│     ├── 'annotations': GeoDataFrame shape: (14, 5) (2D shapes)
│     ├── 'dl-tissue': GeoDataFrame shape: (2, 2) (2D shapes)
│     ├── 'tiles': GeoDataFrame shape: (253, 9) (2D shapes)
│     └── 'tissues': GeoDataFrame shape: (2, 2) (2D shapes)
└── Tables
      ├── 'resnet50_tiles': AnnData (253, 2048)
      └── 'uni2_tiles': AnnData (253, 1536)
with coordinate systems:
    ▸ 'global', with elements:
        wsi_thumbnail (Images), annotations (Shapes), dl-tissue (Shapes), tiles (Shapes), tissues (Shapes)

Visualize tissue

The tissues have been detected, so you will see both colored contours and id of tissues.

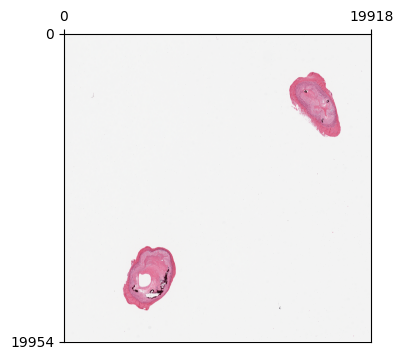

zs.pl.tissue(wsi)

If you want to zoom in to specific tissue, you can specify the tissue id.

zs.pl.tissue(wsi, tissue_id=0)

If this is not enough, you can add a zoom view to highlight specific region.

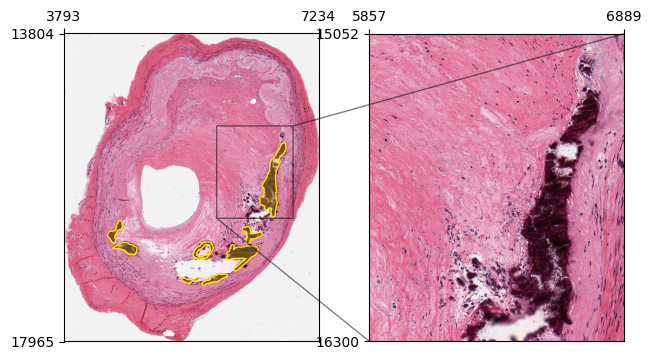

zs.pl.tissue(wsi, tissue_id=0, zoom=[0.6, 0.9, 0.3, 0.6])

You can also render all tissue pieces at once

zs.pl.tissue(wsi, tissue_id="all")

Visualize tiles

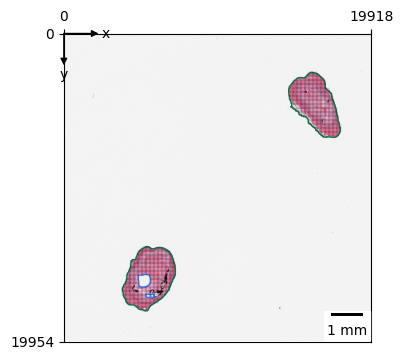

zs.pl.tiles(wsi)

By default, it will only display the tile grid on the tissues.

If not clear enough, you can also zoom in.

zs.pl.tiles(wsi, tissue_id=0, zoom=[0.6, 0.9, 0.3, 0.6])

Furthermore, we can project many features onto the tile visualization.

wsi["tiles"].head()

	tile_id	tissue_id	geometry	diagnostic_quality	visual_cleanliness	focus_issue	staining_issue	tissue_folding_present	misc_artifacts_present
0	0	0	POLYGON ((4052 16394, 4052 16653, 3793 16653, ...	0.663754	0.198376	0.480506	0.549304	0.072527	0.116421
1	1	0	POLYGON ((4052 16653, 4052 16912, 3793 16912, ...	0.742671	0.121662	0.386750	0.444288	0.036697	0.074886
2	2	0	POLYGON ((4311 15617, 4311 15876, 4052 15876, ...	0.791731	0.142956	0.264362	0.382962	0.278880	0.274505
3	3	0	POLYGON ((4311 15876, 4311 16135, 4052 16135, ...	0.742936	0.149261	0.250248	0.435397	0.248712	0.476643
4	4	0	POLYGON ((4311 16135, 4311 16394, 4052 16394, ...	0.753808	0.188161	0.238122	0.335339	0.426094	0.438732

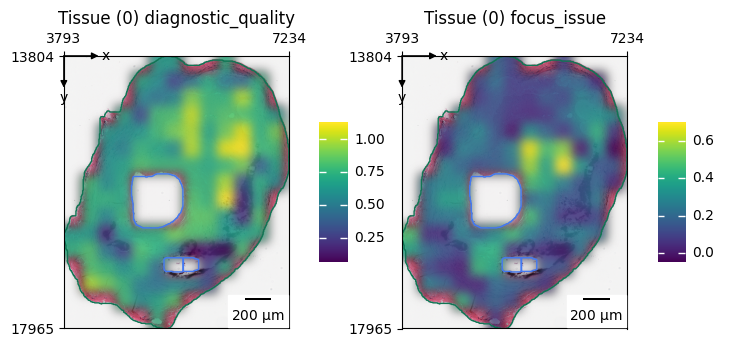

zs.pl.tiles(wsi, tissue_id=0, color=["diagnostic_quality", "focus_issue"], smooth=True)

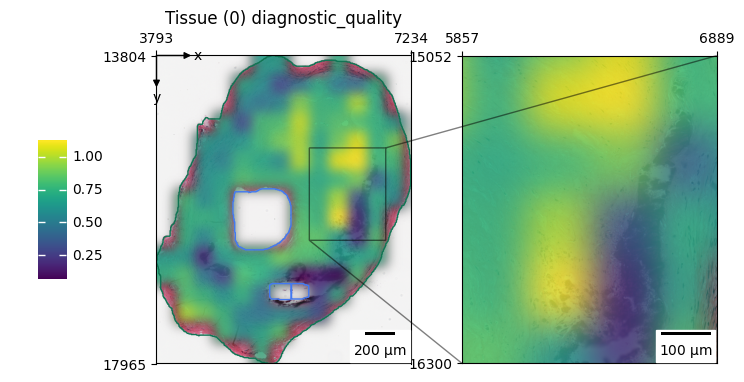

zs.pl.tiles(wsi, tissue_id=0, color="diagnostic_quality", zoom=[0.6, 0.9, 0.3, 0.6], smooth=True)

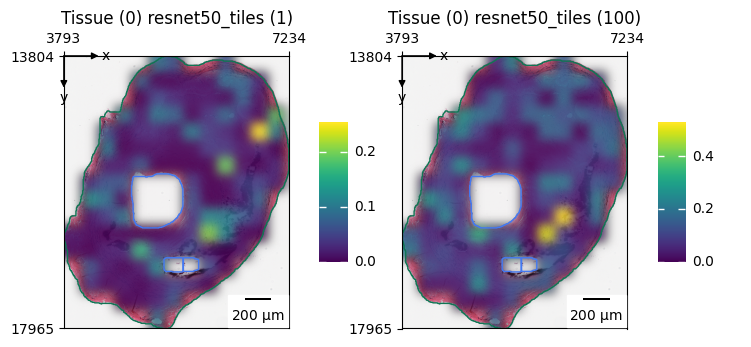

zs.pl.tiles(wsi, tissue_id=0, feature_key="resnet50", color=["1", "100"], smooth=True)

Visualize annotations

If you have imported pathological annotations, they can also be visualized.

wsi["annotations"].head()

	tissue_id	id	objectType	name	geometry
0	0	f56c25e5-ce21-4d42-bcda-b67b9fd98870	annotation	sclerosis	POLYGON ((4631.5 16627, 4629 16628, 4594 16628...
1	0	c799bbe2-5a08-467a-9e5d-6376b718cee8	annotation	sclerosis	POLYGON ((4528 16331, 4527.67 16331.17, 4527 1...
2	0	bcc06960-003b-43f0-9e88-496579dffd34	annotation	sclerosis	POLYGON ((5598.73 17098.36, 5596 17102, 5594.8...
3	0	e3ba7093-e973-424a-9c77-66caa03569fb	annotation	sclerosis	POLYGON ((5964 17053, 5956 17055, 5954.2 17056...
4	0	370d0dc5-f5d1-40d9-bce6-d47f63fc4cbc	annotation	sclerosis	POLYGON ((5649 16849, 5652 16848, 5655 16848, ...

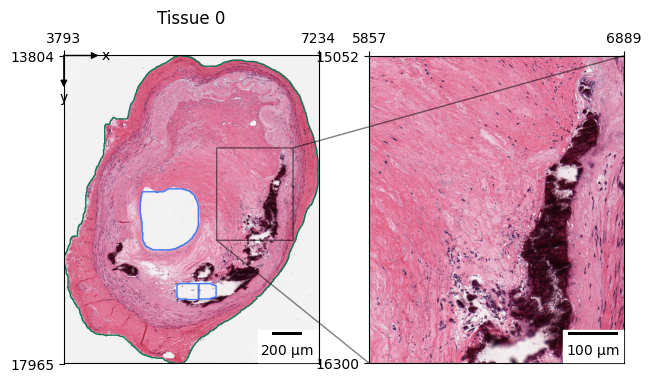

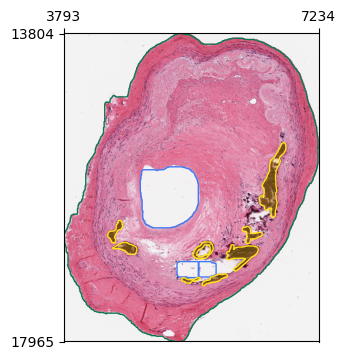

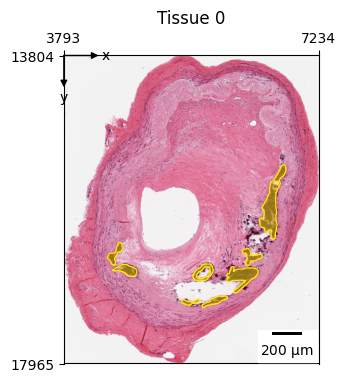

zs.pl.annotations(wsi, "annotations", tissue_id=0)

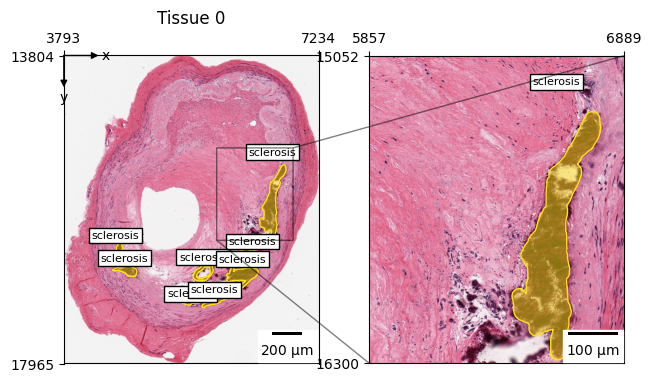

You can also add labels onto the image.

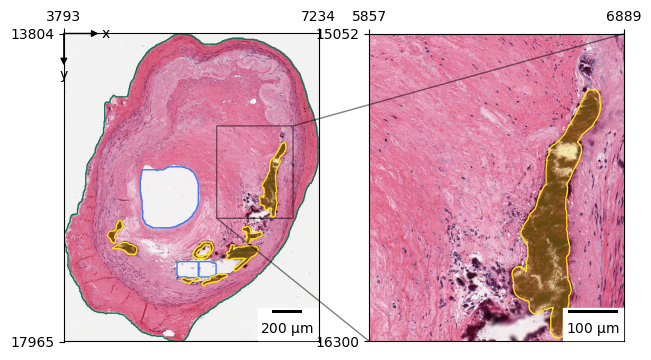

zs.pl.annotations(
    wsi, "annotations", tissue_id=0, label="name", zoom=[0.6, 0.9, 0.3, 0.6]
)

Declarative visualization in LazySlide

Since WSIData extends from SpatialData, you may use spatialdata-plot to visualize the WSI. However, LazySlide implements an super fast and efficient plotting system to help visualize WSI from macro structures to single cells.

We start with an empty viewer, you will need to choose what to add on top of the visualization.

v = zs.pl.WSIViewer(wsi)
v.show()

<Axes: >

In most situation, we need the slide image as the background.

v.add_image()
v.show()

<Axes: >

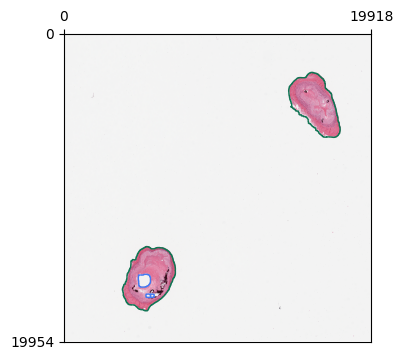

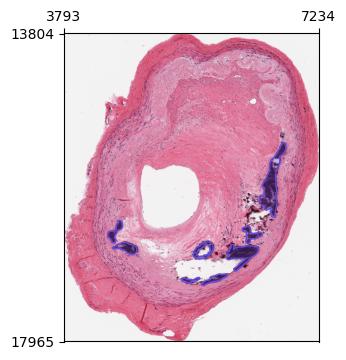

v.add_contours("tissues")
v.show()

<Axes: >

v.add_polygons("annotations")
v.show()

<Axes: >

v.set_tissue_id(0)
v.show()

<Axes: >

v.add_zoom(0.6, 0.9, 0.3, 0.6)
v.add_scalebar()
v.mark_origin()
v.show()

<Axes: >

To summarize, you will have the following code

v = zs.pl.WSIViewer(wsi)
v.add_image()
v.add_contours("tissues")
v.add_polygons("annotations")
v.set_tissue_id(0)
v.add_zoom(0.6, 0.9, 0.3, 0.6)
v.add_scalebar()
v.mark_origin()

<lazyslide.plotting._wsi_viewer.WSIViewer at 0x7fc6fc3f46e0>

If we don’t called the .show() method, nothing will happen. The plotting will be lazily evaluated.

Now let’s called the .show() to render the final image.

v.show()

<Axes: >

You can control if an element shoud be displayed in the zoom view.

Here we disabled the display of yellow annotations in the zoom view.

v = zs.pl.WSIViewer(wsi)
v.add_image()
v.add_polygons("annotations", in_zoom=False)
v.set_tissue_id(0)
v.add_zoom(0.6, 0.9, 0.3, 0.6)
v.show()

<Axes: >

Efficient debugging of visualization

The progressive adding components on top of the images is cool, it gives you finer control on what to visualize.

However, it’s not efficient to debug, once you add a component, you cannot delete it.

If you have a large image and you create a new viewer everytime when you want to modify some tiny details, you waste your time on re-computing the image rendering process.

Luckily, we have a solution for this. When you add a component, simply set cache=False, and it will only be rendered in the next rendering.

v = zs.pl.WSIViewer(wsi)
v.add_image()
v.add_polygons("annotations", cache=False)
v.set_tissue_id(0)
v.show()

<Axes: >

If we called the .show() again, the annotation will disappered.

v.show()

<Axes: >

In this way, you can easily change color without recomputing the image rendering process.

You may not notice the difference in this example, but if you have a huge WSI. This can make significant difference.

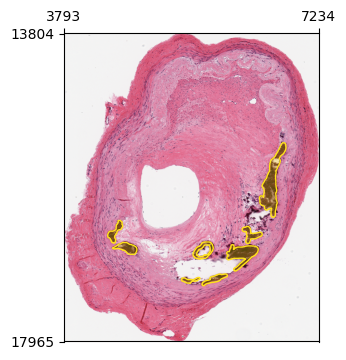

v.add_polygons("annotations", color="#604FDD", cache=False)
v.show()

<Axes: >
