Survival prediction with cancer WSIs

In this tutorial, you will be introduced to building survival prediction models using both machine learning and deep learning approaches with WSIs.

We will use a subset of WSIs from TCGA-READ for illustration purposes only. The provided code and analyses are intended solely as a demonstration of workflow and usage. The results shown here are not validated and should not be used for drawing biological or clinical conclusions.

from huggingface_hub import hf_hub_download

metadata = hf_hub_download(
    "rendeirolab/lazyslide-data",
    "TCGA_READ_survival.csv",
    repo_type="dataset",
    local_dir=".",
)

import pandas as pd

metadata = pd.read_csv(metadata)
metadata.head(5)

	PATIENT_ID	AGE	AJCC_STAGING_EDITION	BIOPSY_SITE	DAYS_LAST_FOLLOWUP	DAYS_TO_BIRTH	DAYS_TO_DEATH	DISEASE_TYPE	ETHNICITY	ICD_10	...	SEX	VITAL_STATUS	YEAR_OF_DIAGNOSIS	OS_STATUS	OS_MONTHS	PROJECT_ID	PROJECT_NAME	PROJECT_STATE	FILE_ID	FILE_NAME
0	TCGA-AG-3601	68.0	6th	Rectum	0.0	-24837.0	NaN	Rectal Adenocarcinoma	NaN	C19	...	Male	Alive	2007.0	0:LIVING	0.000000	TCGA-READ	Rectal Adenocarcinoma	released	d76f3d2c-f30d-4592-a51d-620e17419222	TCGA-AG-3601-01Z-00-DX1.30ac783e-ba70-49ef-8be...
1	TCGA-AF-6136	72.0	7th	Rectum	232.0	-26490.0	NaN	Rectal Adenocarcinoma	NOT HISPANIC OR LATINO	C19	...	Female	Alive	2011.0	0:LIVING	24.342970	TCGA-READ	Rectal Adenocarcinoma	released	ec1f9ff4-f634-42fb-9c64-dee4950df4df	TCGA-AF-6136-01Z-00-DX1.a0e22964-b7b4-43ba-bfa...
2	TCGA-AH-6549	66.0	7th	Rectum	6.0	-24337.0	NaN	Rectal Adenocarcinoma	NaN	C20	...	Male	Alive	2010.0	0:LIVING	17.477004	TCGA-READ	Rectal Adenocarcinoma	released	1f07b827-255a-4d32-9eea-f2daff7bd937	TCGA-AH-6549-01Z-00-DX1.38ea40f7-4ebf-49cc-801...
3	TCGA-AG-A01Y	49.0	5th	Rectum	0.0	-18112.0	NaN	Rectal Adenocarcinoma	NaN	C20	...	Female	Alive	2004.0	0:LIVING	0.000000	TCGA-READ	Rectal Adenocarcinoma	released	b7c07212-1bc0-48b3-8b69-6adffa0fb08f	TCGA-AG-A01Y-01Z-00-DX1.3F49940B-3758-419B-89C...
4	TCGA-AG-3883	69.0	6th	Rectum	31.0	-25415.0	NaN	Rectal Adenocarcinoma	NaN	C20	...	Male	Alive	2008.0	0:LIVING	1.018397	TCGA-READ	Rectal Adenocarcinoma	released	2d8f32f9-bb04-46cd-8d63-91b591e9b8b3	TCGA-AG-3883-01Z-00-DX1.2a21ffb1-8a60-4424-b74...

5 rows × 31 columns

To get all svs files, run the following code:

slides = snapshot_download(
    "rendeirolab/lazyslide-data",
    repo_type="dataset",
    local_dir="tcga_read",
    allow_patterns=["tcga_read/*.svs"],
)

Now let’s run feature extration on these slides, you can parallel it however you want depends on your infrastructure setup, here is a demo code to parallel across GPU nodes with SLURM.

from dask.distributed import Client
from dask_jobqueue import SLURMCluster

def wsi_feature_extraction(slide):

    from wsidata import open_wsi
    import lazyslide as zs

    wsi = open_wsi(s, attach_thumbnail=False)
    zs.pp.find_tissues(wsi)
    zs.pp.tile_tissues(wsi, 448, mpp=0.5, background_fraction=0.5)

    zs.tl.feature_extraction(wsi, "titan", pbar=False)
    zs.tl.feature_aggregation(wsi, "titan", encoder="titan")
    wsi.write()

cluster = SLURMCluster(
    queue="gpu",
    cores=8,
    processes=1,
    memory="10 GB",
    job_extra_directives=[
        "-q gpu",
        "--gres=gpu:h100pcie:1",
        "--time=1:00:00",
    ],
    worker_extra_args=["--resources GPU=1"],
    log_directory="./dask-logs",
)

client = Client(cluster)
cluster.scale(10)  # Get 10 workers, each with one H100 to run

futures = [
    client.submit(wsi_feature_extraction, f"slides/{slide}", resources={"GPU": 1})
    for slide in matadata["FILE_NAME"]
]

When you finished with the processing, you can aggregate the slide features with

from wsidata import agg_wsi

matadata["slide_path"] = [f"tcga_read/{s}" for s in matadata["FILE_NAME"]]
adata = agg_wsi(matadata, wsi_col="slide_path", feature_key="titan")

We prepared a pre-computed features matrix if you don’t want to run the feature extration.

import anndata as ad

titan_features = hf_hub_download(
    "rendeirolab/lazyslide-data",
    "TCGA_READ_subset_TITAN.h5ad",
    repo_type="dataset",
    local_dir=".",
)

adata = ad.read_h5ad(titan_features)

adata

AnnData object with n_obs × n_vars = 50 × 768
    obs: 'PATIENT_ID', 'AGE', 'AJCC_STAGING_EDITION', 'BIOPSY_SITE', 'DAYS_LAST_FOLLOWUP', 'DAYS_TO_BIRTH', 'DAYS_TO_DEATH', 'DISEASE_TYPE', 'ETHNICITY', 'ICD_10', 'MORPHOLOGY', 'OTHER_PATIENT_ID', 'PATH_M_STAGE', 'PATH_N_STAGE', 'PATH_STAGE', 'PATH_T_STAGE', 'PRIMARY_DIAGNOSIS', 'PRIMARY_SITE_PATIENT', 'PRIOR_MALIGNANCY', 'PRIOR_TREATMENT', 'RACE', 'SEX', 'VITAL_STATUS', 'YEAR_OF_DIAGNOSIS', 'OS_STATUS', 'OS_MONTHS', 'PROJECT_ID', 'PROJECT_NAME', 'PROJECT_STATE', 'FILE_ID', 'FILE_NAME', 'slide_path'

Some data preprocessing to prepare for survival prediction

adata.obs["status"] = (
    adata.obs["OS_STATUS"].map({"0:LIVING": 0, "1:DECEASED": 1}).astype(bool)
)

import scanpy as sc

sc.pp.scale(adata)
sc.pp.pca(adata)

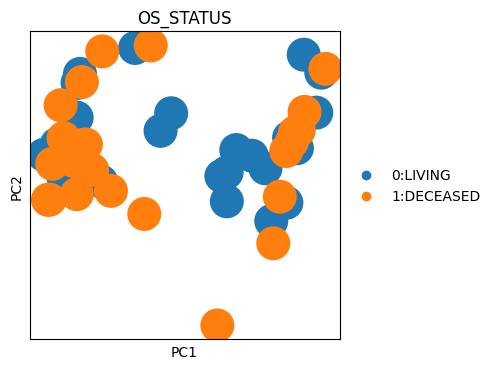

sc.pl.pca(adata, color="OS_STATUS")

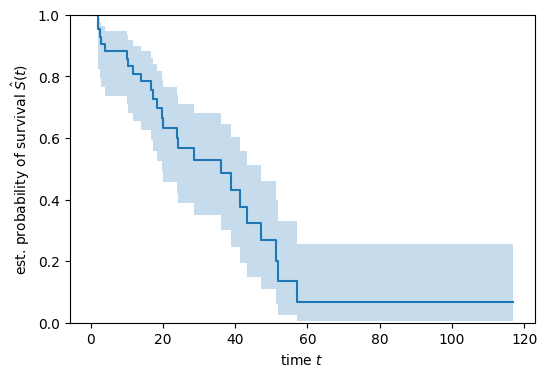

Kaplan meier analysis

Kaplan-Meier analysis is a non-parametric method used to estimate the survival probability over time, even when some data are censored. You may already saw KM plot in many publications.

In real analysis, you will plot the KM plot for different groups and compare them.

import matplotlib.pyplot as plt

from sksurv.nonparametric import kaplan_meier_estimator

time, survival_prob, conf_int = kaplan_meier_estimator(
    adata.obs["status"], adata.obs["OS_MONTHS"], conf_type="log-log"
)
with plt.rc_context({"figure.figsize": (6, 4)}):
    plt.step(time, survival_prob, where="post")
    plt.fill_between(time, conf_int[0], conf_int[1], alpha=0.25, step="post")
    plt.ylim(0, 1)
    plt.ylabel(r"est. probability of survival $\hat{S}(t)$")
    plt.xlabel("time $t$")

Machine learning model

Let’s start with a machine learning based model. We used the model from scikit-survival.

The metric we use to evaluate the model is called Concordance Index (cindex).

The concordance index (cindex) is a measure of how well a survival model predicts the order of events. It quantifies the agreement between the predicted risk scores and the actual observed survival times, with a value of 1.0 indicating perfect prediction and 0.5 indicating random chance. A reasonable model performance should have cindex > 0.7.

from sksurv.linear_model import CoxnetSurvivalAnalysis
from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(
    adata.X,
    adata.obs[["status", "OS_MONTHS"]].to_records(index=False),
    test_size=0.2,
    stratify=adata.obs["status"],
    random_state=10,
)

model = CoxnetSurvivalAnalysis(
    l1_ratio=0.9, alpha_min_ratio=0.01, n_alphas=100, fit_baseline_model=True
)
model.fit(X_train, y_train)
s = model.score(X_test, y_test)
print("cindex:", model.score(X_test, y_test))

cindex: 0.6428571428571429

Nerual network

If you have a lot of data, you can train a neural network to predict the hazard ratio.

Let’s defined a simple models with the input of slide features and output of hazard ratio.

import torch
import torch.nn as nn
import torch.nn.functional as F


# Define a model
class CoxMLP(nn.Module):
    def __init__(self, in_features, hidden_dim=32, dropout=0.3):
        super().__init__()
        self.fc1 = nn.Linear(in_features, hidden_dim)
        self.fc2 = nn.Linear(hidden_dim, hidden_dim)
        self.out = nn.Linear(hidden_dim, 1)  # single risk score

    def forward(self, x):
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        return self.out(x)  # risk score, no activation

X_train, X_test, E_train, E_test, T_train, T_test = train_test_split(
    adata.X,
    adata.obs["status"].to_numpy(),
    adata.obs["OS_MONTHS"].to_numpy(),
    test_size=0.2,
    stratify=adata.obs["status"],
    random_state=10,
)

X_train = torch.tensor(X_train)
X_test = torch.tensor(X_test)
E_train = torch.tensor(E_train)
E_test = torch.tensor(E_test)
T_train = torch.tensor(T_train)
T_test = torch.tensor(T_test)

Here we use the torchsurv package for loss function and cindex calculation.

Here we only use a simple training loop for showcase.

from torchsurv.loss import cox
from torchsurv.metrics.cindex import ConcordanceIndex

# The titan features size is 768
model = CoxMLP(768)
torch.manual_seed(0)

# Trained for 10 epoches
for _ in range(10):
    estimate = model(X_train)
    loss = cox.neg_partial_log_likelihood(estimate, E_train, T_train)
    loss.backward()

# Evaluation
with torch.no_grad():
    log_hz = model(X_test)
    cindex = ConcordanceIndex()
    print(cindex(log_hz, E_test, T_test))

tensor(0.8571, dtype=torch.float64)
